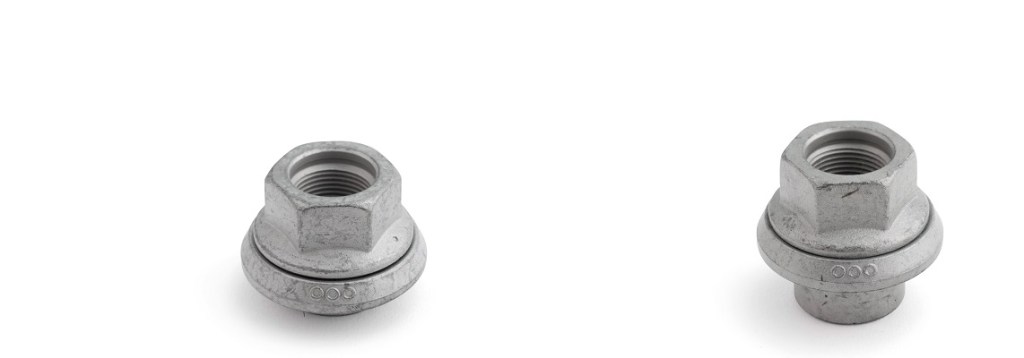

Sleeved wheel nuts
High quality short and long sleeved wheel nuts for mounting Alcoa® Wheels. Available for Metric, UNF and BSF fitment.
M18 x 1.5 – short for ø bolt holes 26 mm
M18 x 1.5 – long for ø bolt holes 26 mm
M20 x 1.5 – short for ø bolt holes 30mm
M20 x 1.5 – long for ø bolt holes 30mm
M22x 1.5 – short for ø bolt holes 32mm
M22 x 1.5 – long for ø bolt holes 32mm
Volvo short 7/8” – 14 UNF 32mm
Volvo long 7/8” – 14 UNF 32mm
Scania short 7/8” – 11 BSF 32mm
Scania long 7/8” – 11 BSF 32mm
Valves
Nickel plated valves for replacement. The special black T-shape grommet reduce the risk of galvanic corrosion between the valve and the wheel. Available in different sizes and angles. Consult the Product Information Valve chart for more details on older wheels.
straight nickel plated valve length 40mm
straight nickel plated valve length 54mm
straight nickel plated valve length 60mm
straight nickel plated valve length 83mm (Workhorse® Wheels)
nickel plated valve with 7° angle
nickel plated valve with 27° angle
nickel plated valve with 45° angle
nickel plated valve with 60° angle

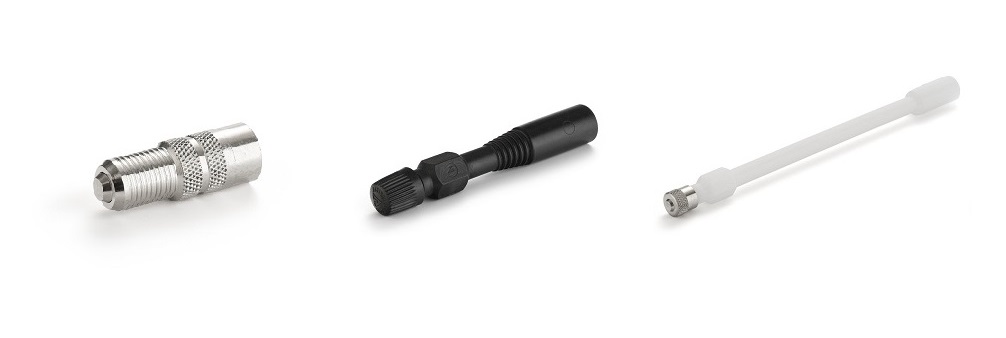

Valve extensions
Nickel plated and plastic valve extensions which enable tyre pressure checks. Available in 20, 70 and 150 mm.
20mm nickel plated valve extension
70mm POM plastic valve extension
150mm POM plastic valve extension
