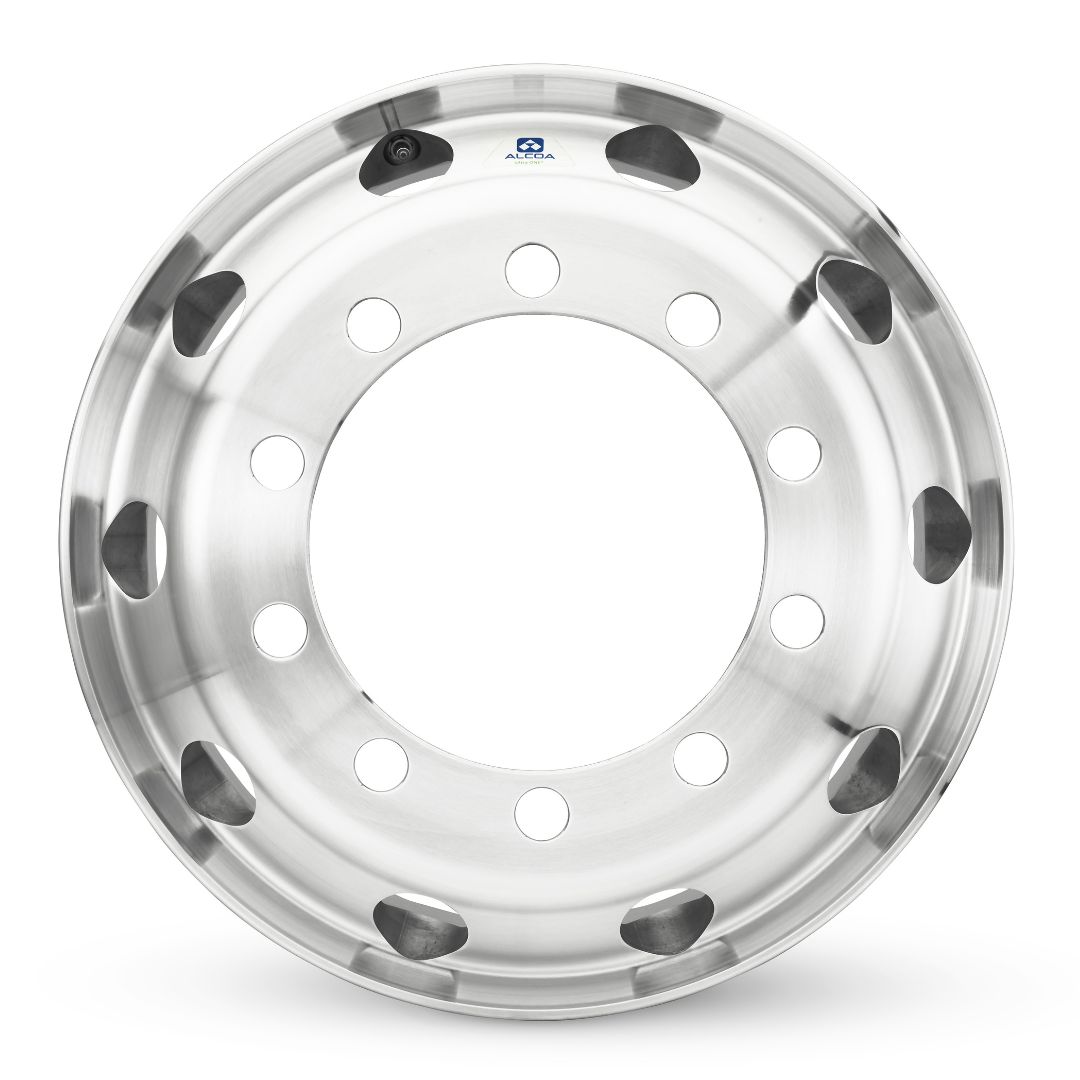

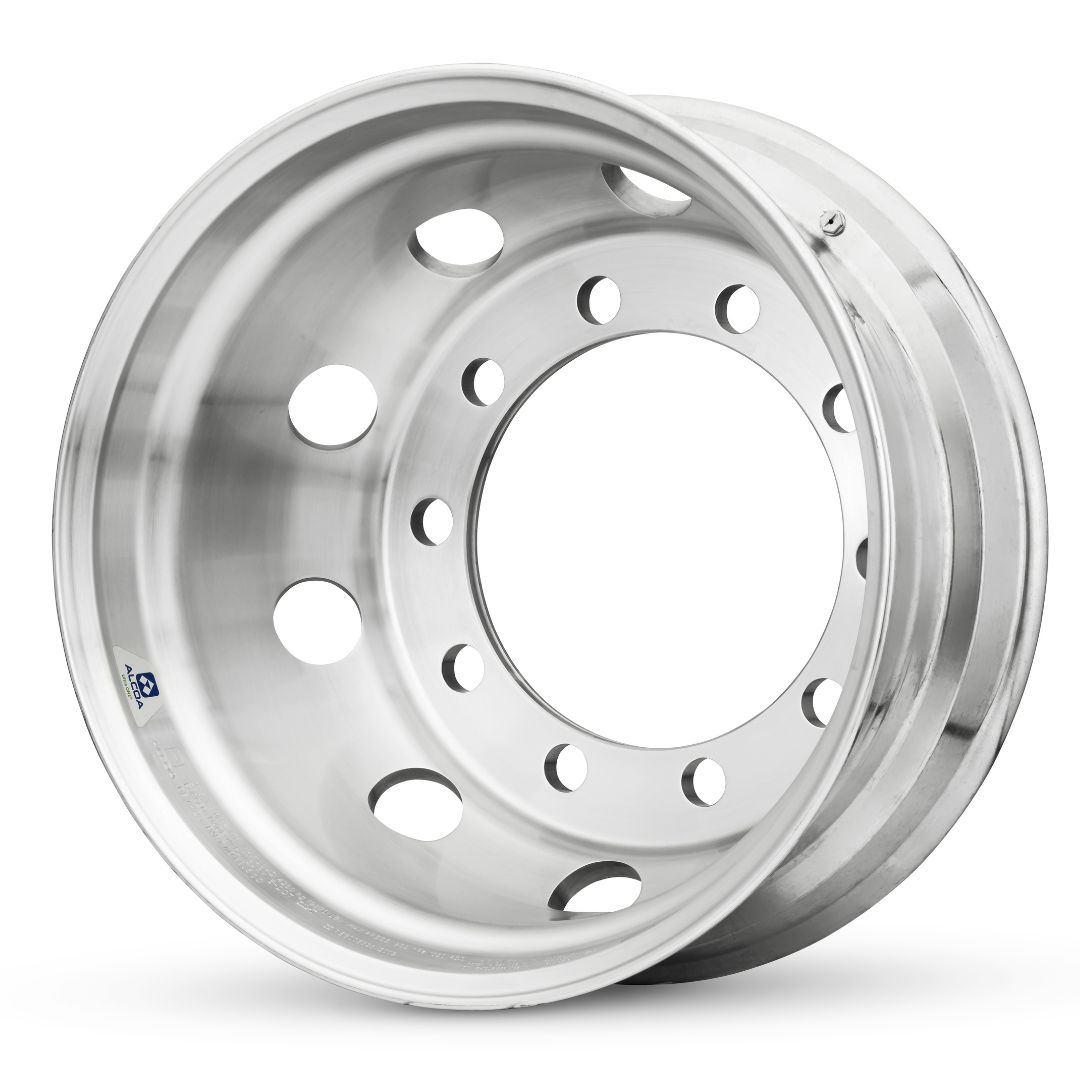

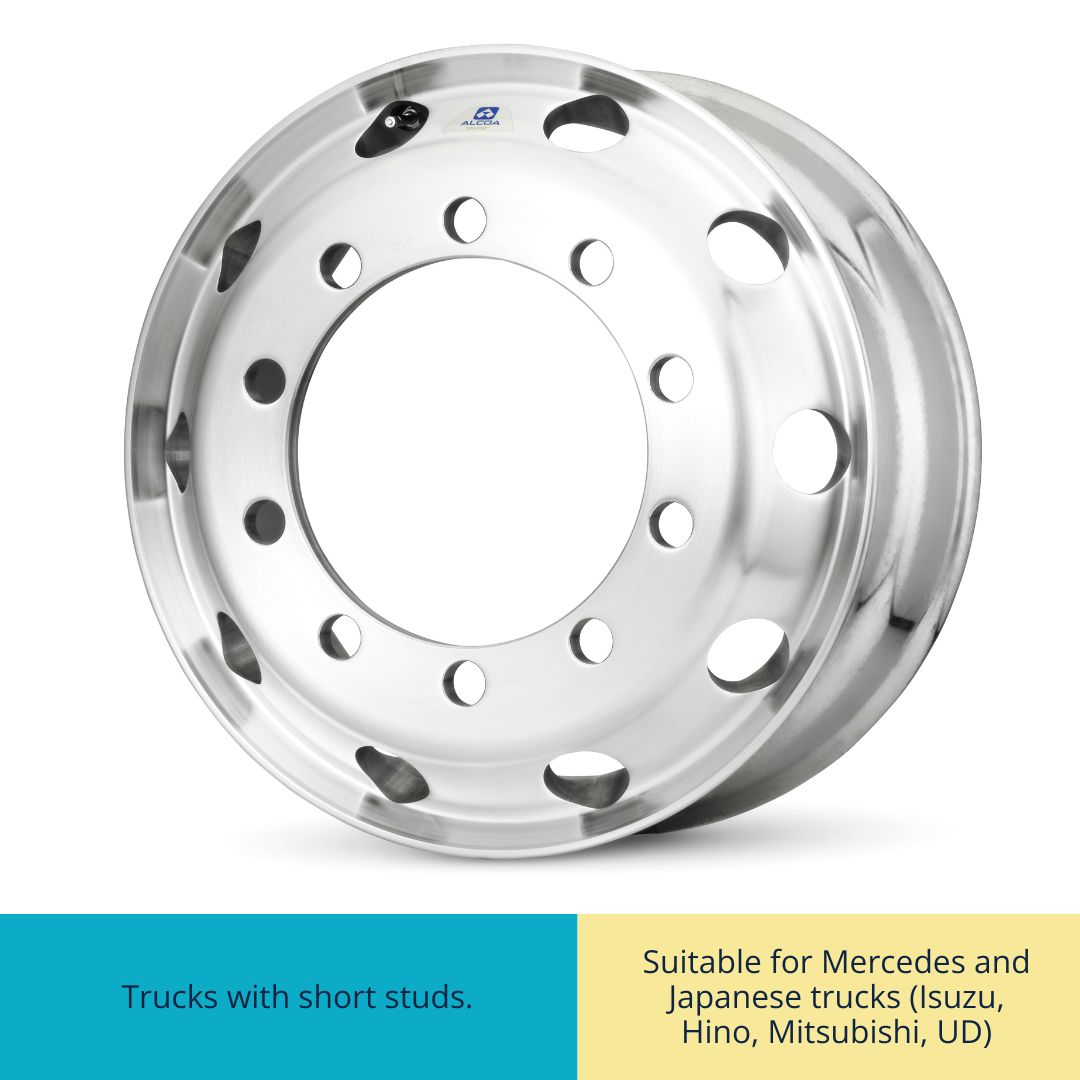

ALCOA WHEELS 89U513 ON SALE | 22.5×9.00 – Hub Pilot – 335mm Bolt Circle
Alcoa Wheels is the latest in advanced innovation, manufacturing, and engineering on the road. It features Alcoa’s proprietary MagnaForce® alloy and vHub™ Bore Technology and is ideal for heavy-duty truck, trailer, and bus applications.
22.5×9.00, 155.5 offset (mm) Ultra ONE® ALCOA® WHEELS with an extended 4250 kg maximum load capacity are made of the proprietary MagnaForce® alloy technology allowing us to create lighter wheels without compromising on strength.
| Specifications | Measurement |
| Product Part Number | 89U51x|89U52x |
| Wheel Size (in) | 22.5×9.00 |
| Mounting System | Hub Pilot |
| Bolt Holes | 10 |
| Bolt Circle | 335mm |
| Bolt Hole Diameter | 32|26mm |
| Hub Bore | 281mm |
| Approx. Weight (kgs) | 22.9|23.0 kgs |
| Outset (mm) | 175.9966 mm |
| Inset (mm) | 155.4988 mm |
| Max Load (kgs) | 4250 kgs |
| Max Cold Infl. (psi) | 130 psi |
| Valve Stem | 70MS-07 |
Alcoa Wheels Key Features:
- Proprietary MagnaForce® Alloy: This advanced alloy enhances strength and durability while reducing weight. It supports the use of all six aluminium wheels simultaneously.
- The new vHub Bore Technology reduces hub-to-wheel contact area by up to 64% compared to other aluminium wheels on the market, leaving less surface area for corrosion to form
- Alcoa Wheel 89u513 is ideal for heavy-duty trucks and trailers.
