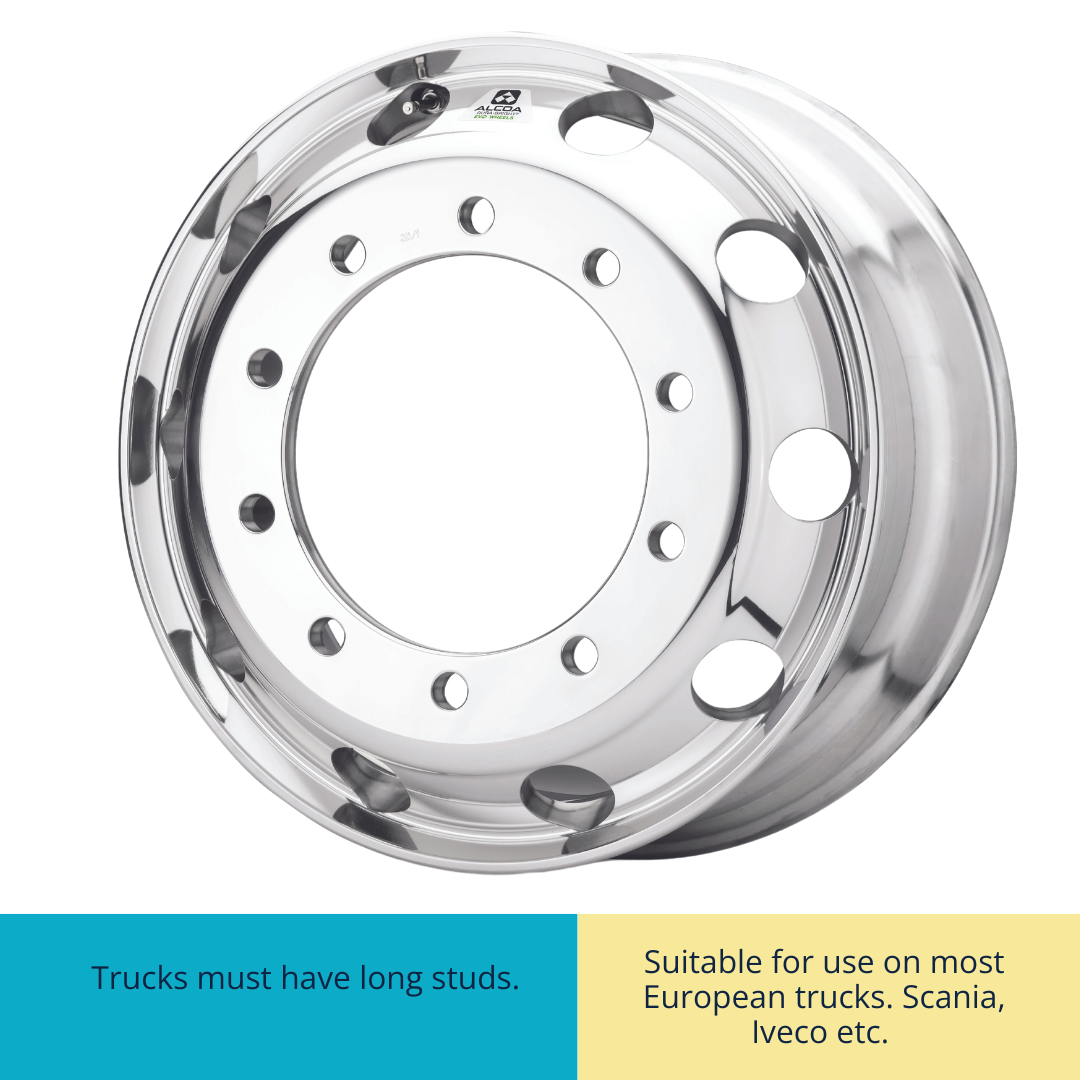

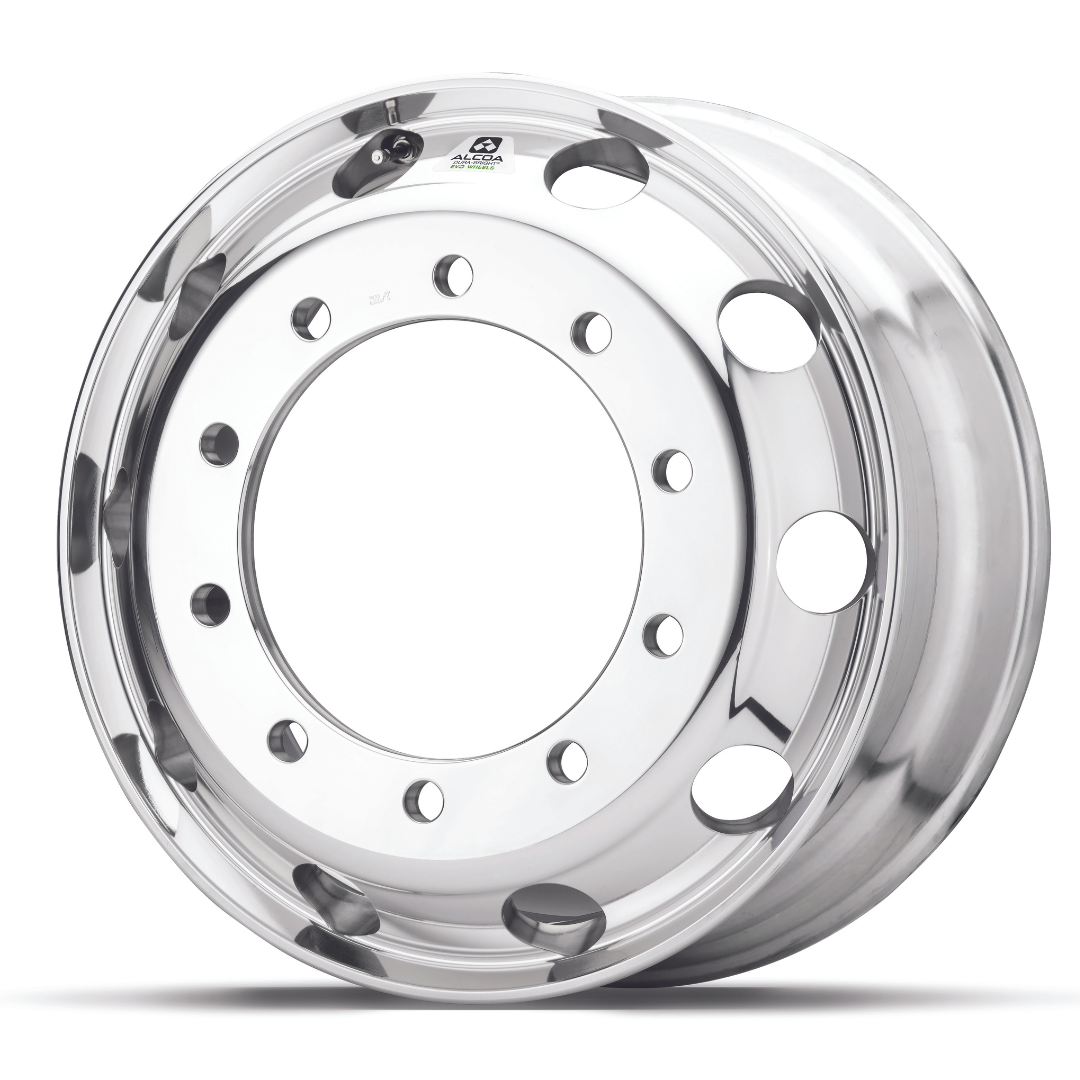

ALCOA WHEELS D892523DB| 22.5×9.00 – Hub Pilot – 335mm Bolt Circle
The latest in advanced innovation, manufacturing and engineering on the road. Featuring Alcoa’s proprietary MagnaForce® alloy and vHub™ Bore Technology. It is ideal for heavy-duty truck, trailer, and motorhome applications.
| Product Part Number | 89251X|89252X |
| Wheel Size (in) | 22.5×9.00 |
| Mounting System | Hub Pilot |
| Bolt Holes | 10 |
| Bolt Circle | 335mm |
| Bolt Hole Diameter | 32|26mm |
| Hub Bore | 281mm |
| Approx. Weight (kgs) | 23.5|23.7 kgs |
| Outset (mm) | 176 mm |
| Inset (mm) | 154.3 mm |
| Max Load (kgs) | 4125 kgs |
| Max Cold Infl. (psi) | 130 psi |
| Valve Stem | 60MS-00 |
Alcoa Key Features:
- Proprietary MagnaForce® Alloy: This advanced alloy enhances strength and durability while reducing weight. It supports the use of all six aluminium wheels simultaneously.
- Innovative vHub™ Bore Technology: The new vHub Bore Technology reduces hub-to-wheel contact area by up to 64% versus other aluminium wheels on the market, leaving less surface area for corrosion to form.

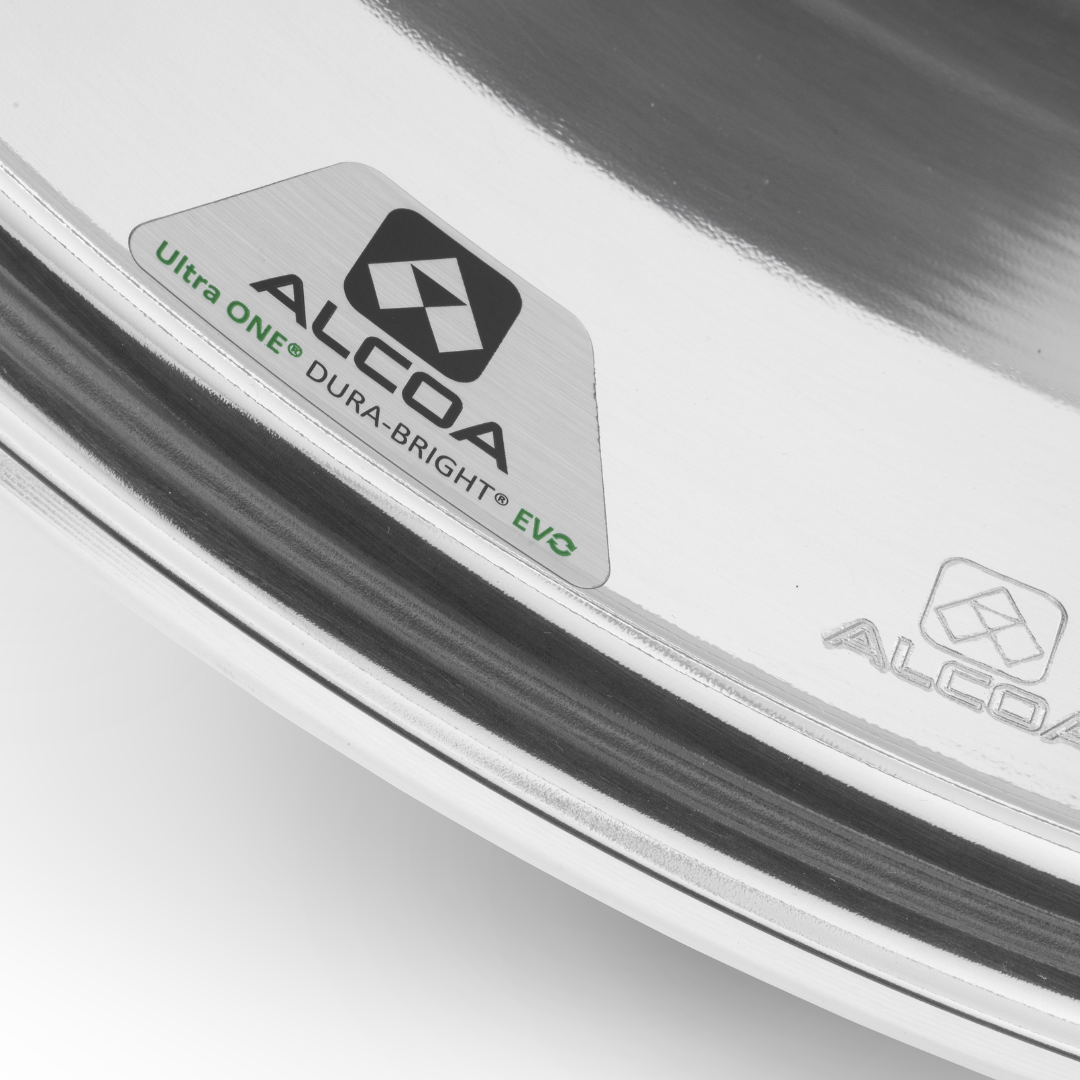

- Surface Treatment: Experience effortless maintenance with Dura-Bright® EVO Surface Treatment, which penetrates the aluminium to keep wheels bright and shiny.
- Versatility: Ideal for heavy-duty trucks, trailers, and motorhomes, these wheels are designed for steer, drive, and trailer positions in high-load scenarios.
