Description

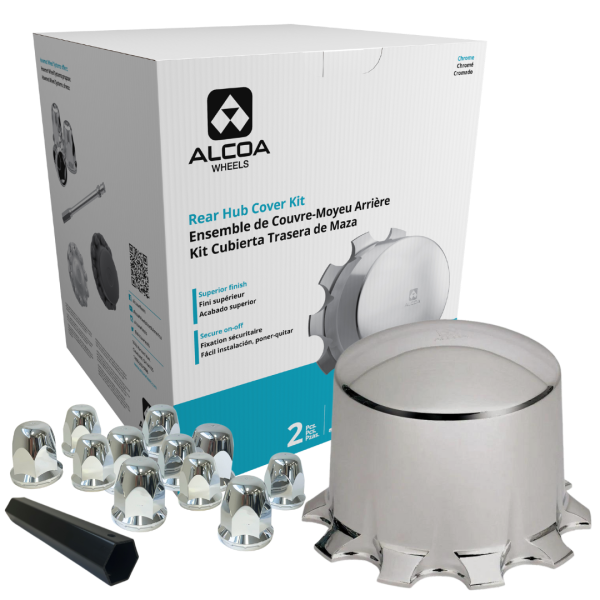

Rear Hub Cover Kit

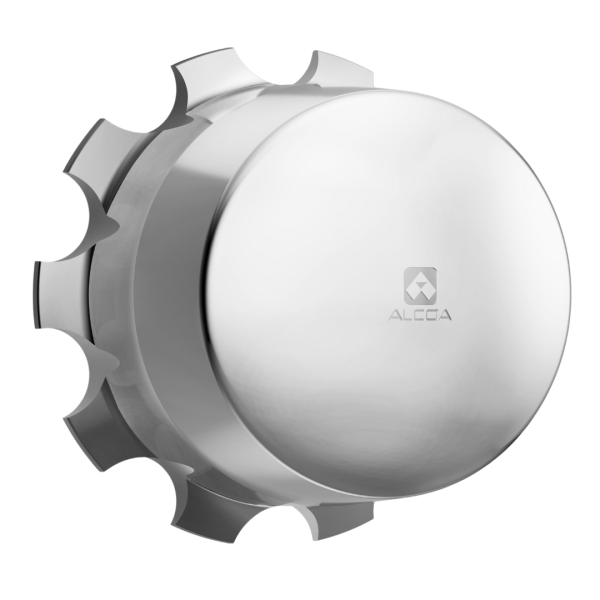

Keep your wheels cleaner and protected with Alcoa Hub Covers. These covers shield your wheels from dirt, road debris, and the elements, helping to prevent rust, corrosion, and dust build-up on critical parts like lug nuts and wheel studs. Made from durable ABS plastic with a chrome-like finish, they add a sleek, polished look to your truck or trailer, while making maintenance easier. Built to last, Alcoa Hub Covers offer both style and protection for the long haul.
Axle: Rear
Attachment: Screw-on
Finish: Chrome
Threads >=6
Packaging: 1 Kit
.
To install Rear Hub Cover Kit, you can follow these steps:
This Alcoa Hub Cover System is designed only for 10 lug 285.75mm hub piloted wheels.
- Do not remove the original equipment lug nuts. Before installing, check stud standout to ensure a minimum of 4-6 full threads
above the top of lug nut are available or the cover system may improperly engagement and result in loss of cover. Install 5

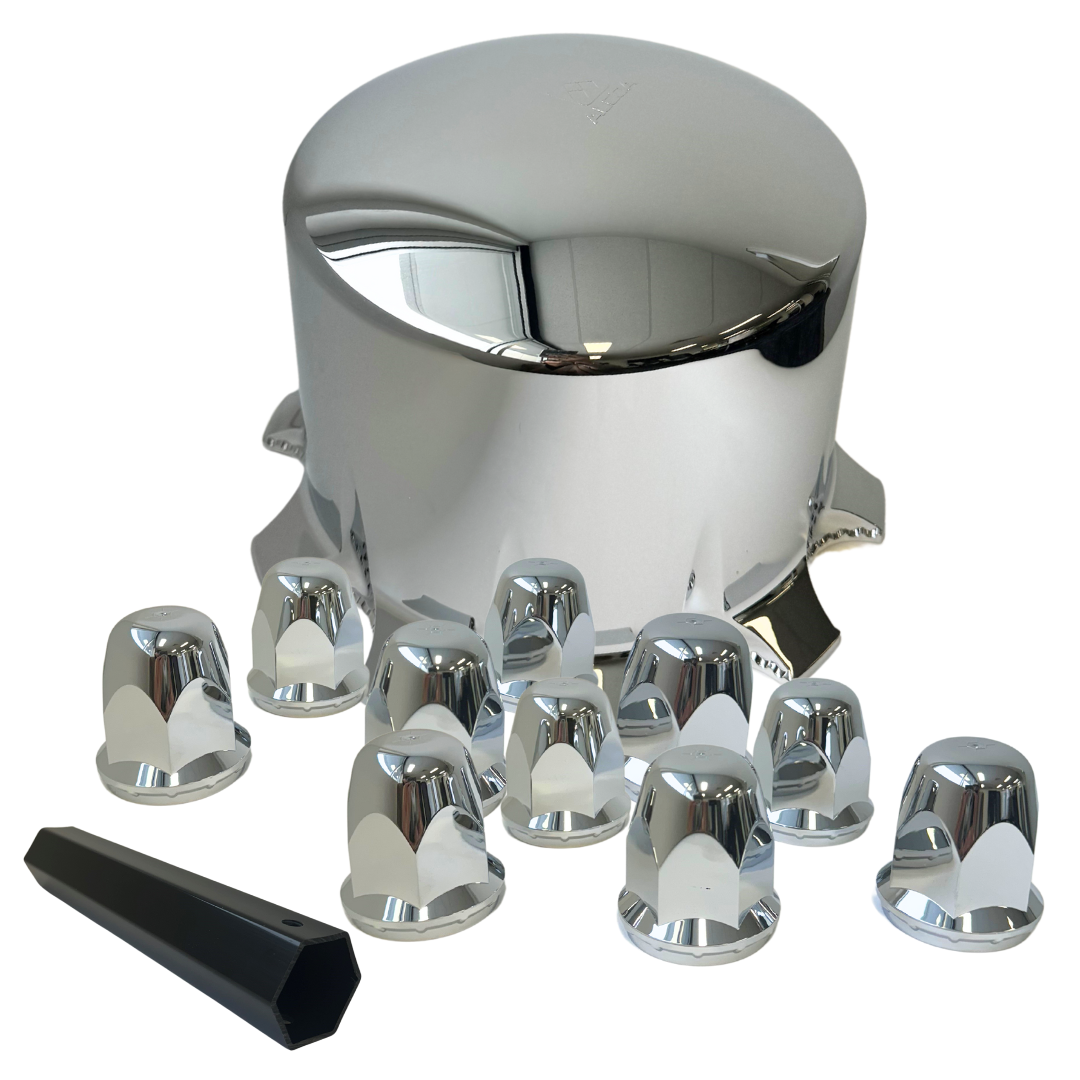

retention nuts on every other stud as shown. Tighten retention nut to 20 in-lbs. or hand tight. WARNING – over torqueing can strip the
threads of the retaining nut and lead to loss of cover. - Align hub cover over retention nuts so that the hub cover inner retention cylinders align with retention nuts.
- Using a rubber mallet, tap hub cover at lug tower location of retention nuts. Tap until hub cover is fully seated. (approximately 2mm gap
will be seen due to improved standoff design) - To remove, insert removal tool (000800) hook into removal notch on the side of the hub cover and pull firmly. Repeat action around cover
to complete removal.
