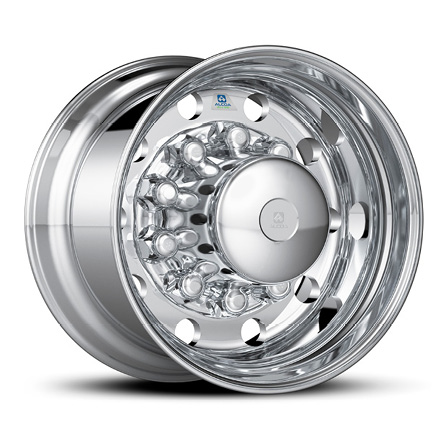

84U61x
22.5" x 14" - Hub Pilot - 285.75mm Bolt Circle
| Specifications | Measurement |
| Product Part Number | 84U61x |
| Wheel Size (in) | 22.5" x 14" |
| Mounting System | Hub Pilot |
| Bolt Holes | 10 |
| Bolt Circle | 285.75mm |
| Bolt Hole Diameter | 26mm |
| Hub Bore | 220.1mm |
| Approx. Weight (kgs) | 22 kgs |
| Outset (mm) | 23.876 mm |
| Inset (mm) | 0 mm |
| Max Load (kgs) | 5806 kgs |
| Max Cold Infl. (psi) | 130 psi |
| Valve Stem | TR55E |
| Part Number | Finish |
| 84U612 | Mirror Polish Inside Only |
| 84U617 | LvL ONE |
| 84U618 | LvL ONE |
| 84U611BLK | Dura-Black |
| 84U612BLK | Dura-Black |
| 84U610DB | Brushed with Dura-Bright |
| 84U611DB | Mirror Polish Outside Only with Dura-Bright |
| 84U612DB | Mirror Polish Inside Only with Dura-Bright |
| 84U617DF | LvL ONE with Dura-Flange |
| 84U612DD | Mirror Polish Inside Only with Dura-Bright and Dura-Flange |
†See our Warranty page for more information
Availability of the product may vary; please check with our team.
