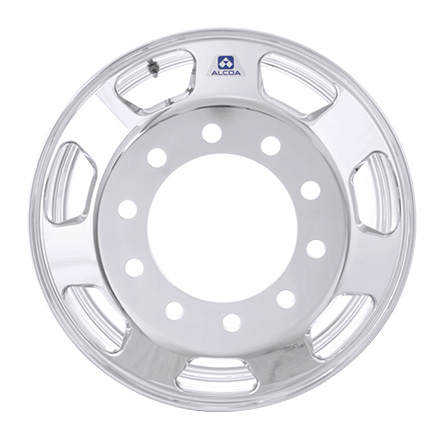

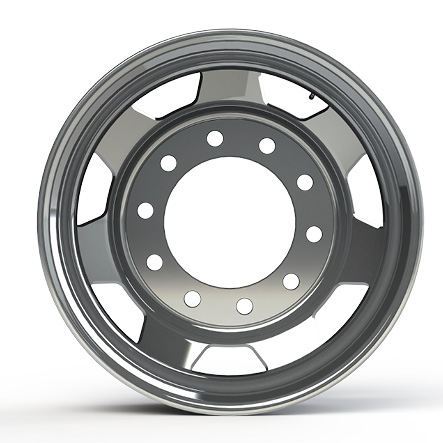

88U68x
22.5" x 8.25" - Hub Pilot - 285.75mm Bolt Circle
| Specifications | Measurement |
| Product Part Number | 88U68x |
| Wheel Size (in) | 22.5" x 8.25" |
| Mounting System | Hub Pilot |
| Bolt Holes | 10 |
| Bolt Circle | 285.75mm |
| Bolt Hole Diameter | 26mm |
| Hub Bore | 220.1mm |
| Approx. Weight (kgs) | 9 kgs |
| Outset (mm) | 167.64 mm |
| Inset (mm) | 147.574 mm |
| Max Load (kgs) | 3356 kgs |
| Max Cold Infl. (psi) | 130 psi |
| Valve Stem | TR554D |
| Part Number | Finish |
| 88U681 | Mirror Polish Outside Only |
| 88U681DB | Mirror Polish Outside Only with Dura-Bright |
| 88U682 | Mirror Polish Inside Only |
| 88U682DB | Mirror Polish Inside Only with Dura-Bright |
| 88U683DB | Mirror Polish Both Sides with Dura-Bright |
| 88U687 | LvL ONE |
| 88U68BLK | Dura-Black |
†See our Warranty page for more information
Availability of the product may vary; please check with our team.
