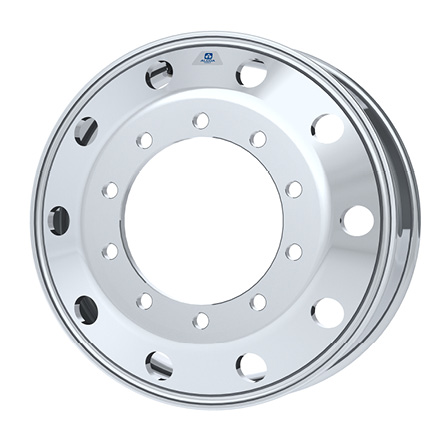

98350x
24.5" x 8.25" - Hub Pilot - 335mm Bolt Circle
| Specifications | Measurement |
| Product Part Number | 98350x |
| Wheel Size (in) | 24.5" x 8.25" |
| Mounting System | Hub Pilot |
| Bolt Holes | 10 |
| Bolt Circle | 335mm |
| Bolt Hole Diameter | 26mm |
| Hub Bore | 281.2mm |
| Approx. Weight (kgs) | 28 kgs |
| Outset (mm) | 172.466 mm |
| Inset (mm) | 147.574 mm |
| Max Load (kgs) | 3855 kgs |
| Max Cold Infl. (psi) | 132 psi |
| Valve Stem | TR554D |
| Part Number | Finish |
| 983507 | LvL ONE |
†See our Warranty page for more information
Availability of the product may vary; please check with our team.
