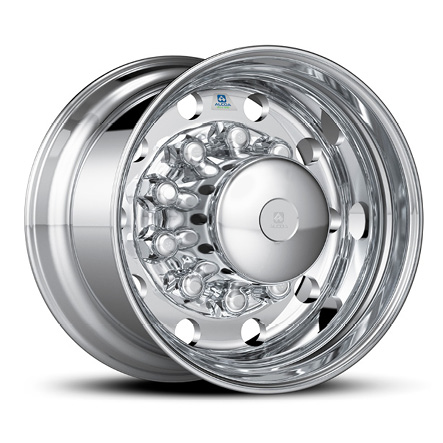

84U64x0
22.5" x 14" - Hub Pilot - 285.75mm Bolt Circle
The lightest and strongest 14” wide base wheel in the industry. Utilizes proprietary MagnaForce® alloy to further reduce weight and improve operational performance. Save over 1,400 lbs. when converting from steel dual wheels and tires on an 18 wheeler. Ideal for tanker trailers, bulk trailers and long haul tractors. It replaces 84U62x.
| Specifications | Measurement |
| Product Part Number | 84U64x |
| Wheel Size (in) | 22.5" x 14" |
| Mounting System | Hub Pilot |
| Bolt Holes | 10 |
| Bolt Circle | 285.75mm |
| Bolt Hole Diameter | 26mm |
| Hub Bore | 220.1mm |
| Approx. Weight (lbs) | 49 lbs |
| Outset (in) | 2" |
| Inset (in) | N/A" |
| Max Load (lbs) | 12800 lbs |
| Max Cold Infl. (psi) | 130 psi |
| Valve Stem | TR553E |
| Part Number | Finish |
| 84U642 | Mirror Polish Inside Only |
| 84U647 | High Polish |
| 84U64BLK | Dura-Black |
| 84U642DB | Mirror Polish Inside Only with Dura-Bright |
| Accessories and Mounting Hardware | Part Number |
| Front Hub Cover (Includes Nut Covers Where Applicable) |
N/A |
| Rear Hub Cover (Includes Nut Covers Where Applicable) |
086200DT (chrome one piece), 086300DT (black one piece), 085000DT (chrome multi), 085100 (black multi) |
| Nut Cover Only (Not Intended to Secure Hub Covers) |
001811, 001841 |
| Alcoa® Mounting Hardware Kits | - |
Related Documents
-
Dura-Bright® Wheels Cleaning Guide
301.70 KB
-
Dura-Bright® Brochure
2.11 MB
-
22.5” x 14” Wide Base Data Sheet
1.40 MB
0 0 and 7 finish options are determined by inset or outset mounting positions and may not be finished on both sides. See chart for position and available finish options.
1Hub cover system kits with part numbers 076185 (front), 077185 (rear), 082122 (front), and 082133 (rear) contain screw-on Hug-A-Lug® nut covers and require a minimum of four (4) threads of the stud to extend above the tightened cap nut for use. Six (6) threads are recommended.
2082012 (30mm kit Front and Rear).
3OEM exclusive. Purchase through Peterbilt dealer only.
4OEM exclusive. Purchase through Kenworth dealer only.
5OEM exclusive. Purchase through Volvo dealer only.
†See our Warranty page for more information
See Wheel Accessory Products Catalog for part number specific fitment information. Always perform a fitment check to ensure accessories are secure before operating vehicle.
