88U60x
22.5" x 8.25" - Hub Pilot - 285.75mm Bolt Circle
As part of Kenworth’s 100th-anniversary celebrations, Alcoa® Wheels designed a special Kenworth 100-stylized wheel. The lightest, strongest, and brightest wheel. Utilizes proprietary MagnaForce® alloy to further reduce weight and improve operational performance. It offers a balanced combination of durability and elegance, making it an excellent choice for trucks and trailers alike.
| Specifications | Measurement |
| Product Part Number | 88U60x |
| Wheel Size (in) | 22.5" x 8.25" |
| Mounting System | Hub Pilot |
| Bolt Holes | 10 |
| Bolt Circle | 285.75mm |
| Bolt Hole Diameter | 26mm |
| Hub Bore | 220.1mm |
| Approx. Weight (lbs) | 44 lbs |
| Outset (in) | 6.6" |
| Inset (in) | 5.79" |
| Max Load (lbs) | 7400 lbs |
| Max Cold Infl. (psi) | 130 psi |
| Valve Stem | TR554D |
| Part Number | Finish |
| 88U601 | Mirror Polish Outside Only |
| 88U601DB | Mirror Polish Outside Only with Dura-Bright |
| 88U602 | Mirror Polish Inside Only |
| 88U602DB | Mirror Polish Inside Only with Dura-Bright |
| 88U603DB | Mirror Polish Both Sides with Dura-Bright |

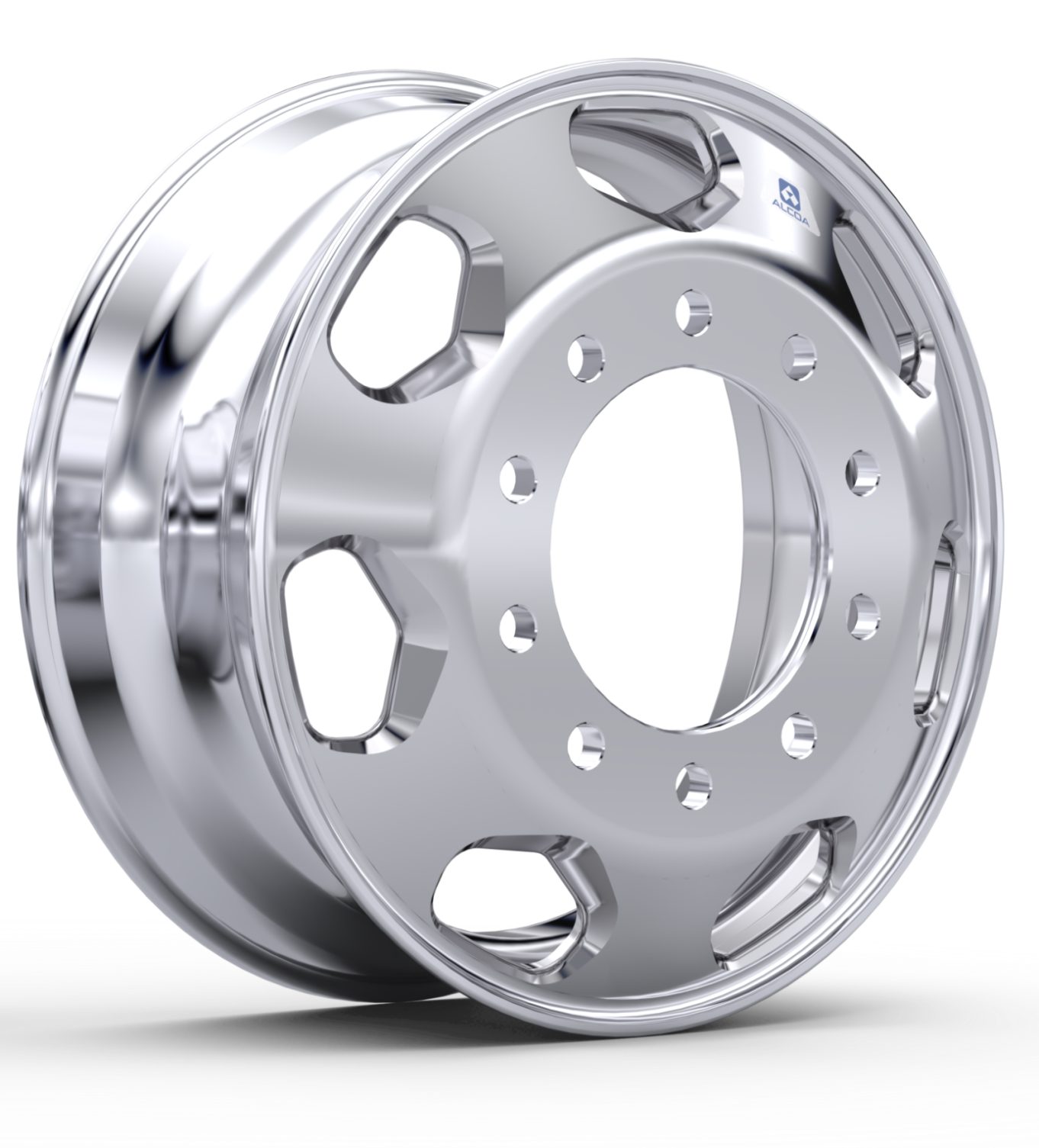

| 88U607 | High Polish |

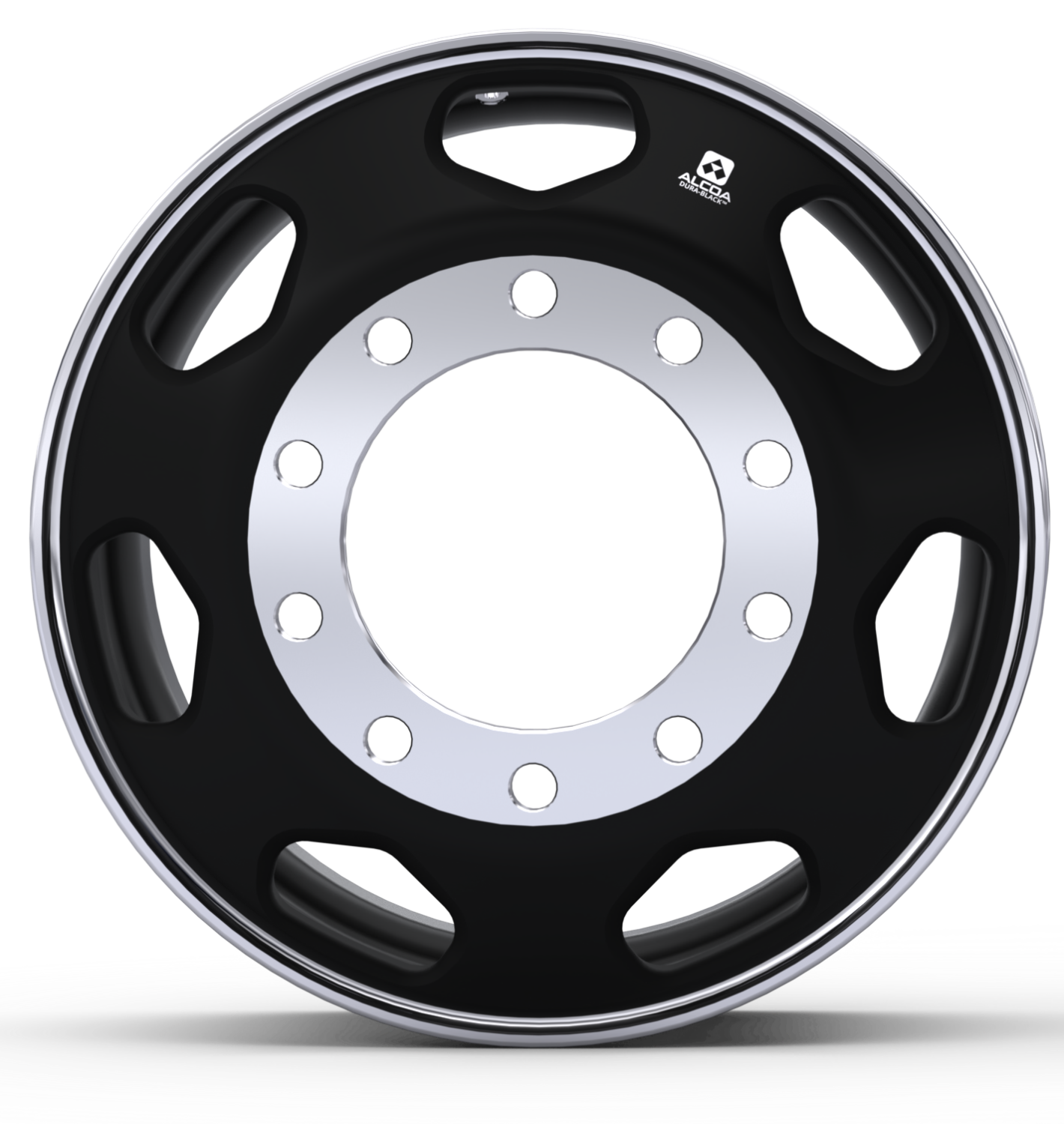

| 88U60BLK | Dura-Black |
Related Documents
-
Kenworth 100 Alcoa® Wheels
1.70 MB
-
Dura-Bright® Wheels Cleaning Guide
301.70 KB
-
Dura-Bright® Brochure
2.11 MB
-
Alcoa® Wheels Quick Reference Guide
119.77 KB
0 0 and 7 finish options are determined by inset or outset mounting positions and may not be finished on both sides. See chart for position and available finish options.
1Hub cover system kits with part numbers 076185 (front), 077185 (rear), 082122 (front), and 082133 (rear) contain screw-on Hug-A-Lug® nut covers and require a minimum of four (4) threads of the stud to extend above the tightened cap nut for use. Six (6) threads are recommended.
2082012 (30mm kit Front and Rear).
3OEM exclusive. Purchase through Peterbilt dealer only.
4OEM exclusive. Purchase through Kenworth dealer only.
5OEM exclusive. Purchase through Volvo dealer only.
†See our Warranty page for more information
See Wheel Accessory Products Catalog for part number specific fitment information. Always perform a fitment check to ensure accessories are secure before operating vehicle.
