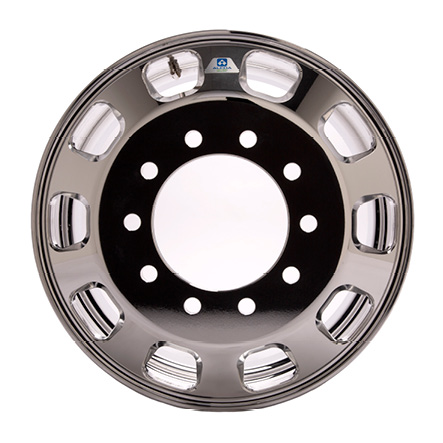

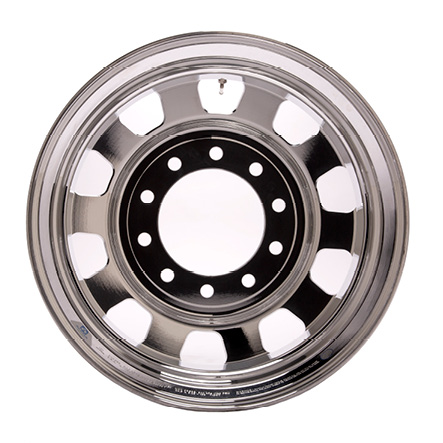

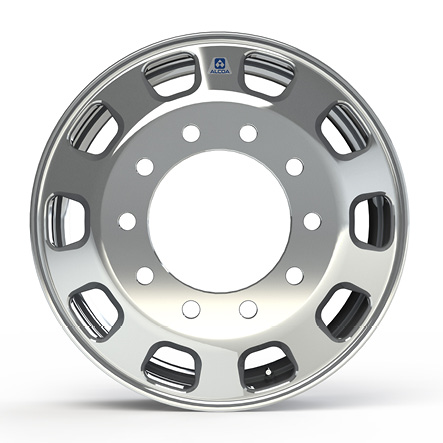

98U69x4
24.5" x 8.25" - Hub Pilot - 285.75mm Bolt Circle

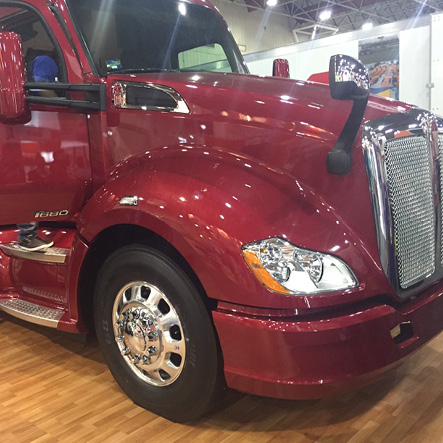

Stylized wheel exclusively for Kenworth Trucks. The lightest, strongest and brightest wheel. Utilize proprietary MagnaForce® alloy to further reduce weight and improve operational performance. Ideal for tractors, trailers, lifts, steers, drives and dollies.
| Specifications | Measurement |
| Product Part Number | 98U69x |
| Wheel Size (in) | 24.5" x 8.25" |
| Mounting System | Hub Pilot |
| Bolt Holes | 10 |
| Bolt Circle | 285.75mm |
| Bolt Hole Diameter | 26mm |
| Hub Bore | 220.1mm |
| Approx. Weight (lbs) | 55 lbs |
| Outset (in) | 6.6" |
| Inset (in) | 5.73" |
| Max Load (lbs) | 7300 lbs |
| Max Cold Infl. (psi) | 130 psi |
| Valve Stem | TR555D |
| Part Number | Finish |
| 98U691 | Mirror Polish Outside Only |
| 98U691DB | Mirror Polish Outside Only with Dura-Bright |
| 98U692 | Mirror Polish Inside Only |
| 98U692DB | Mirror Polish Inside Only with Dura-Bright |
| 98U697 | High Polish |
You are viewing OEM codes for : Kenworth
| Wheel Part Number | Axle Type | Finish | Data Code(s) | Extra Wheel Part Info |
| 98U691 | Steer | Mirror Polish | 5042147, 5854010 | - |
| 98U691DB | Steer | Mirror Polish with Dura-Bright® | 5042147, 5854010, 5859010 | - |
| 98U697 | Rear | High Polish | 5243147 | - |
| 98U692 | Rear | Mirror Polish | 5243147, 5854011 | Single Rear Axle |
| 98U692 | Rear | Mirror Polish | 5243147, 5854012 | Dual Rear Axle |
| 98U692DB | Rear | Mirror Polish with Dura-Bright® | 5243147, 5854011, 5859011 | Single Rear Axle |
| 98U692DB | Rear | Mirror Polish with Dura-Bright® | 5243147, 5854012, 5859012 | Dual Rear Axle |
| 98U693 | Rear | Mirror Polish | 5243147, 5854014 | Dual Rear Axle |
| Accessories and Mounting Hardware | Part Number |
| Front Hub Cover (Includes Nut Covers Where Applicable) |
076188, 0761851, 088100S |
| Rear Hub Cover (Includes Nut Covers Where Applicable) |
077188, 0771851, 089100S |
| Nut Cover Only (Not Intended to Secure Hub Covers) |
001811 |
| Alcoa® Mounting Hardware Kits | - |
Related Documents
-
Dura-Bright® Wheels Cleaning Guide
301.70 KB
-
Dura-Bright® Brochure
2.11 MB
-
Stylized Wheels for Kenworth Trucks
4.96 MB
0 0 and 7 finish options are determined by inset or outset mounting positions and may not be finished on both sides. See chart for position and available finish options.
1Hub cover system kits with part numbers 076185 (front), 077185 (rear), 082122 (front), and 082133 (rear) contain screw-on Hug-A-Lug® nut covers and require a minimum of four (4) threads of the stud to extend above the tightened cap nut for use. Six (6) threads are recommended.
2082012 (30mm kit Front and Rear).
3OEM exclusive. Purchase through Peterbilt dealer only.
4OEM exclusive. Purchase through Kenworth dealer only.
5OEM exclusive. Purchase through Volvo dealer only.
†See our Warranty page for more information
See Wheel Accessory Products Catalog for part number specific fitment information. Always perform a fitment check to ensure accessories are secure before operating vehicle.
